ALLIED MUSTANG SERIES
NO COMPROMISE
YOU'RE INVESTING IN A BOAT FOR ONE REASON. FUN.

Don’t compromise by buying lesser quality boats that will hold you back when the weather turns sour or make you miserable when the wind picks up. Trust in us, Trust in Allied. No other boat can honestly say, more room, better performance, and better ride than all the rest. No other boat in this class has the Bow entry of the Mustang, the Deadrise of the Mustang, the Reversed Chines of the Mustang, and the Quality of the Mustang.

Combined, that means Allied is truly the better choice.

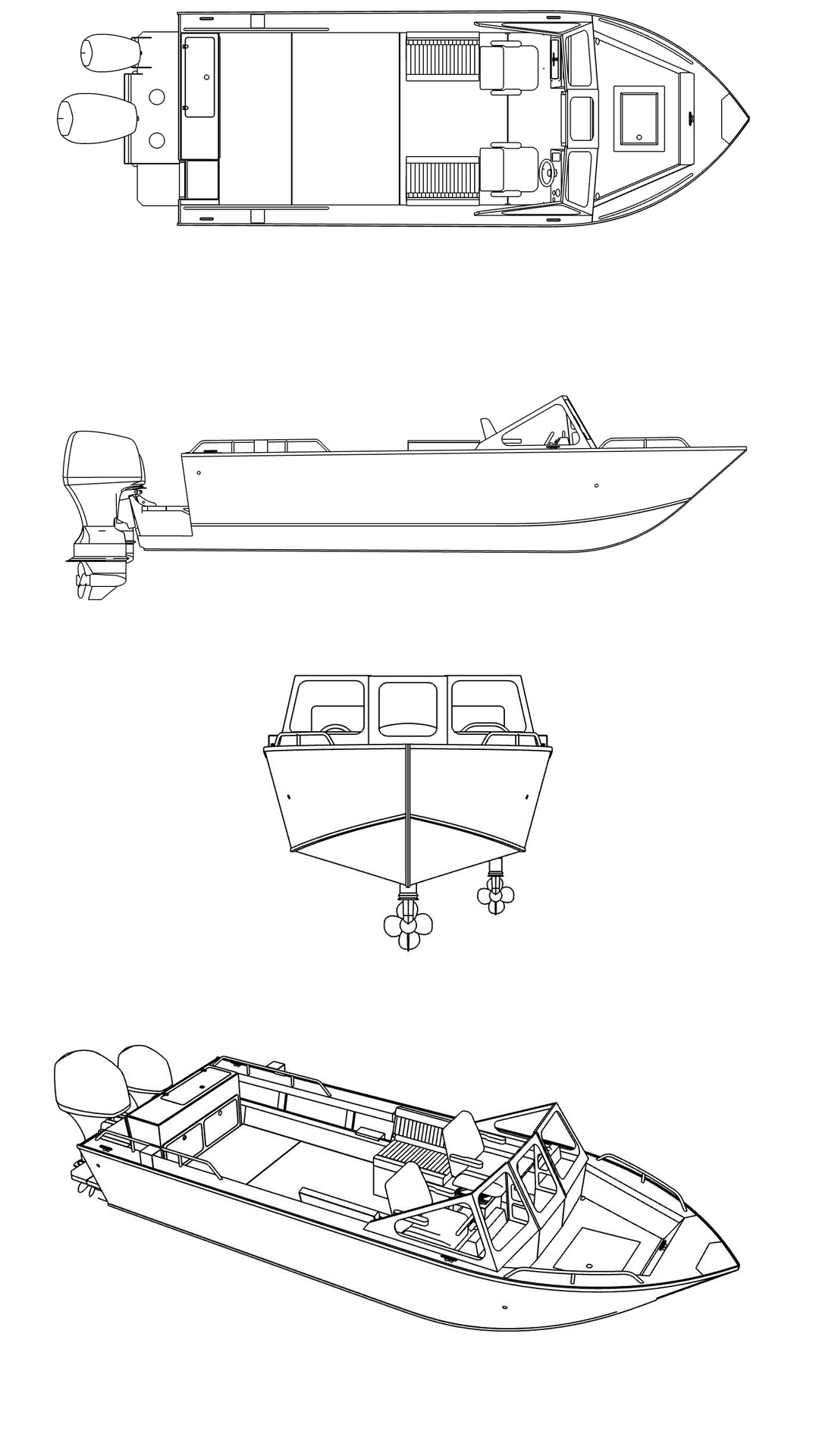

ALLIED MUSTANG SPECIFICATIONS
ALLIED MUSTANG P19
  • LENGTH OVERALL : 22′ 3″
  • CENTERLINE LENGTH : 19′
  • HULL ENTRY : 35°
  • TRANSOM DEADRISE : 15°
  • BEAM : 94″
  • BOTTOM : 72″
  • TRANSOM : .250
  • SIDES : 34″
  • FREEBOARD : 28″
  • FUEL CAPACITY : 35 gallons
  • DRY WEIGHT : 1,450 lbs.
  • PERSON CAPACITY : 6
  • PERSON WT. CAPACITY : 1,450 lbs.
  • MAX WT. CAPACITY : 2,000 lbs.
  • MAX HORSEPOWER : 150 hp.
ALLIED MUSTANG P20
  • LENGTH OVERALL : 23′ 3″
  • CENTERLINE LENGTH : 20′
  • HULL ENTRY : 35°
  • TRANSOM DEADRISE : 15°
  • BEAM : 94″
  • BOTTOM : 72″
  • TRANSOM : .250
  • SIDES : 34″
  • FREEBOARD : 28″
  • FUEL CAPACITY : 35 gallons
  • DRY WEIGHT : 1500 lbs.
  • PERSON CAPACITY : 6
  • PERSON WT. CAPACITY : 1,500 lbs.
  • MAX WT. CAPACITY : 3,300 lbs.
  • MAX HORSEPOWER : 150 hp.
MUSTANG STANDARD FEATURES
CONSTRUCTION
  • Rigid oversized longitudinal box beam
  • Welded walk-through windshield
  • Offshore motor bracket with full length swim step platform and welded aluminum drain plug
  • Stainless Steel fasteners throughout
  • Welded Bow Eye and Transom Eyes
  • Welded rope cleats
  • Over-built one piece 1″ thick Solid keel extrusion for superior keel strength and boat life
  • LWelded Reversed Chines
  • Welded Lifting Strakes
  • Limited Lifetime Hull Warranty to the Original Purchaser
  • High quality marine paint interior with clear coat
ELECTRICAL
  • Instrument panel
  • Tachometer
  • Fuel Gauge
  • Blue Seas Switch Panel
  • Spare Switches wired into the circuit breaker
  • Aft Battery Tray with battery switch
  • Navigation/Anchor lights
  • Recessed Horn
  • High Capacity bilge pump w/ float switch
  • 12v electrical outlet on dash
FEATURES
  • Full top, Sides and 3-piece drop curtain with storage boot.
  • Large, oversized transom fish box
  • Aluminum Bow Rails
  • Full Length Side Trays.
  • Custom Seats with Storage
  • Side bench seats with storage
  • Carpeted side storage trays for noise reduction and longer lasting finish
  • Oversized Lockable glove box
  • Marine Vinyl over wood deck
  • Non Skid gunwales and bow and bow step.
  • High Quality steering components
  • Welded Zinc mounting Tabs
