BOAT MODELS
Allied boats are cut for a precise fit every time and they come standard with a reverse chine and lifting strakes to help you plane faster and run at lower rpm’s.
Allied boats . . . Built for strength, Built for life!
- LENGTH OVERALL : 24′ 3″
- CENTERLINE LENGTH : 20′
- HULL ENTRY : 35°
- TRANSOM DEADRISE : 15°
- BEAM : 94″
- BOTTOM : 78″
- TRANSOM : .250
- SIDES : 34″
- FREEBOARD : 28″
- FUEL CAPACITY : 45 gallons
- DRY WEIGHT : 1500 lbs.
- PERSON CAPACITY : 6
- PERSON WT. CAPACITY : 1,500 lbs.
- MAX WT. CAPACITY : 3,300 lbs.
- MAX HORSEPOWER : 150 hp.
- LENGTH OVERALL : 23′ 3″
- CENTERLINE LENGTH : 19′
- HULL ENTRY : 35°
- TRANSOM DEADRISE : 15°
- BEAM : 94″
- BOTTOM : 78″
- TRANSOM : .250
- SIDES : 34″
- FREEBOARD : 28″
- FUEL CAPACITY : 45 gallons
- DRY WEIGHT : 1,450 lbs.
- PERSON CAPACITY : 6
- PERSON WT. CAPACITY : 1,450 lbs.
- MAX WT. CAPACITY : 2,000 lbs.
- MAX HORSEPOWER : 150 hp.
- Offshore Bracket w/ Extended Bottom & Full Swim Step
- Full Top, Sides & 3 Piece Drop Curtain

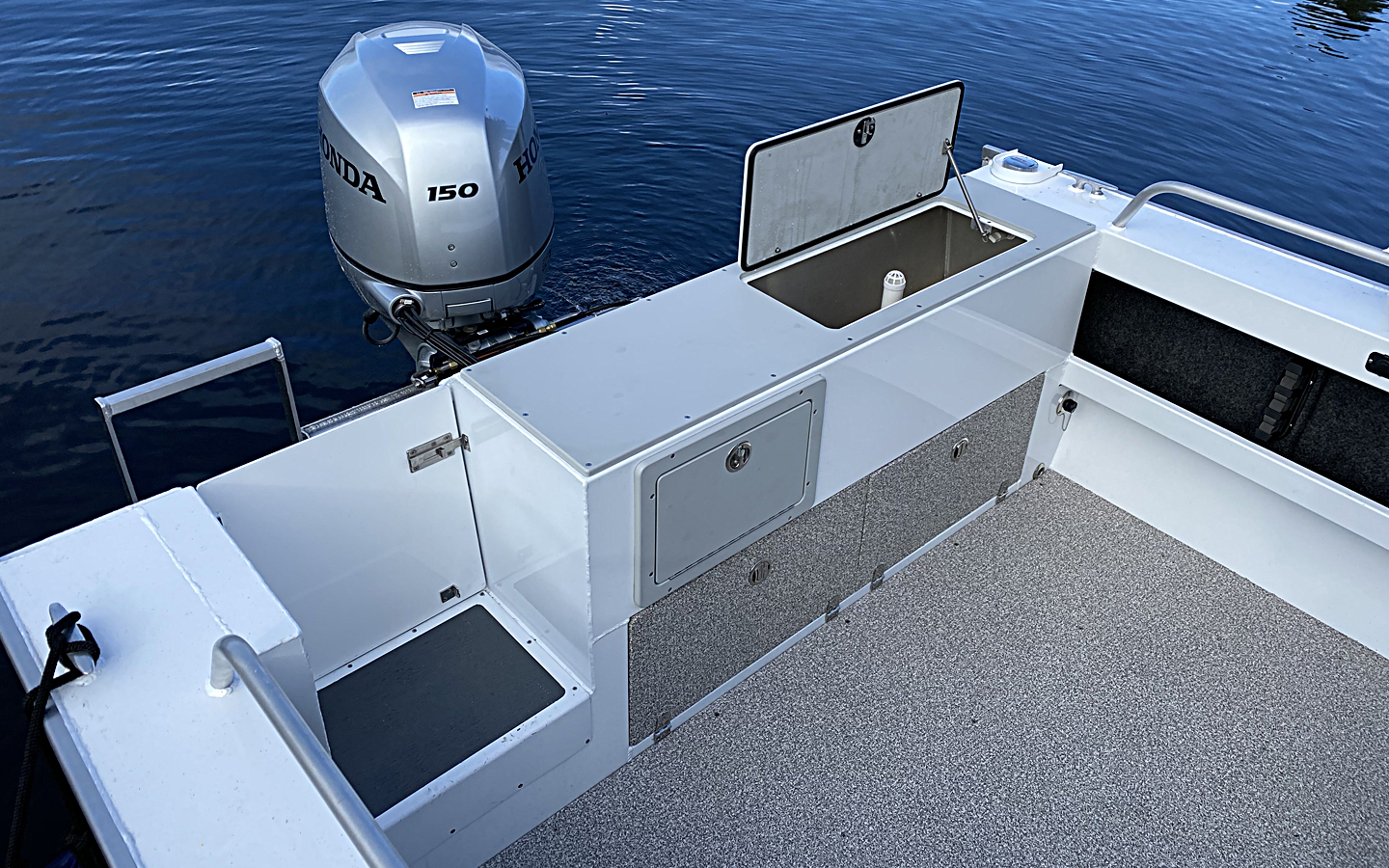

- Large Oversized Transom Fish Box
- Brushed Aluminum Welded Bow Rails
- Full Length Carpeted Side Trays w/ Rod Retainers
- Custom Upholstered Seats w/ Storage Boxes

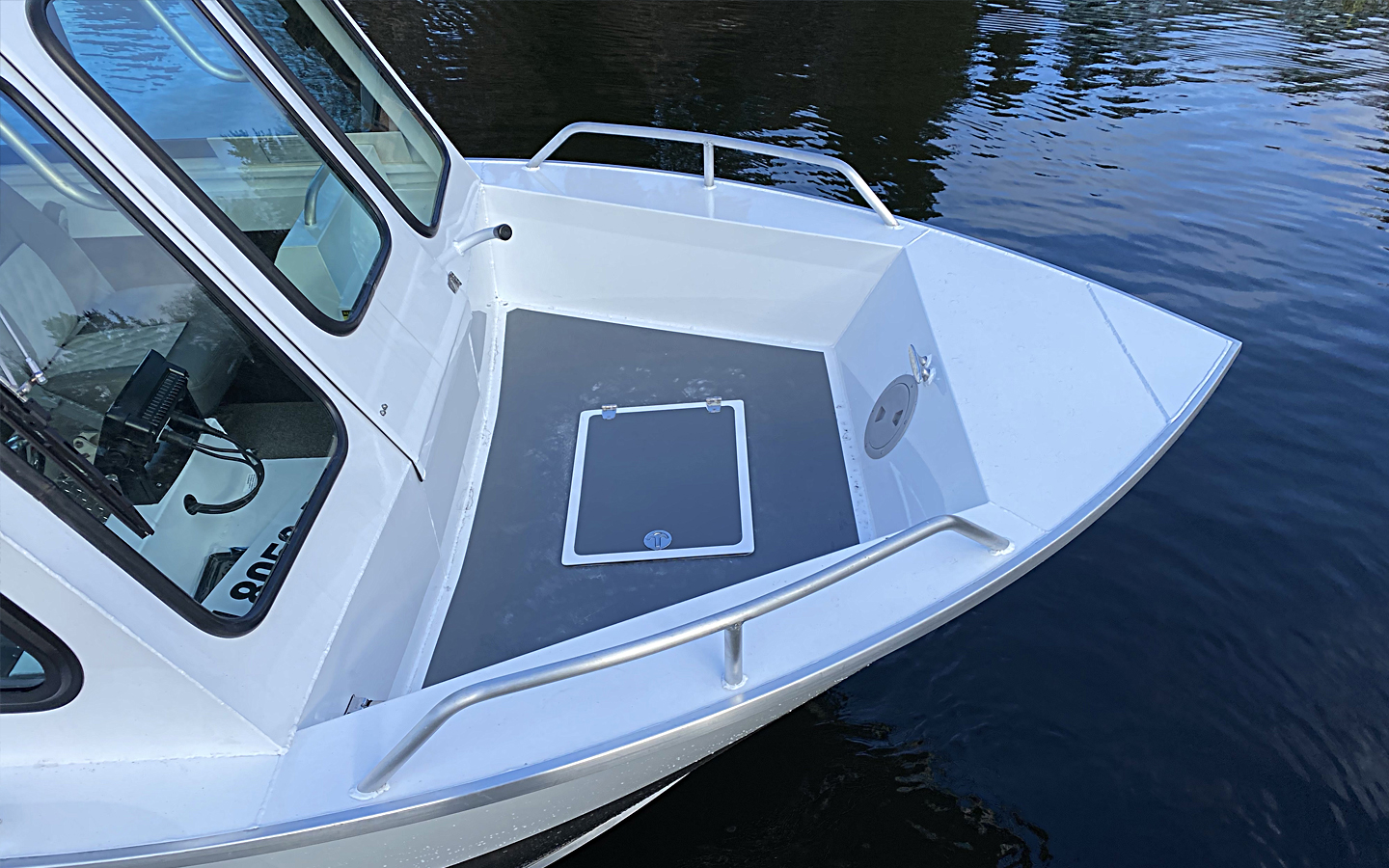

- Huge Bow Storage
- Bow Storage Access Hatch
- Oversized Lockable Glove Box
- Marine Vinyl Over Wood Deck
- Nonskid Gunwales
- Nonskid Bow Plate and Bow Step
- Welded Aluminum Threaded Drain Plug
- High Quality Steering Components
- Welded Zinc Mounting Tabs
- Welded Transducer Mounting Tabs
- Welded Trim Tab Mounting Tabs
- HD Welded Bow Eye
- HD Welded Transom Eyes
- Oversized Bow Drains

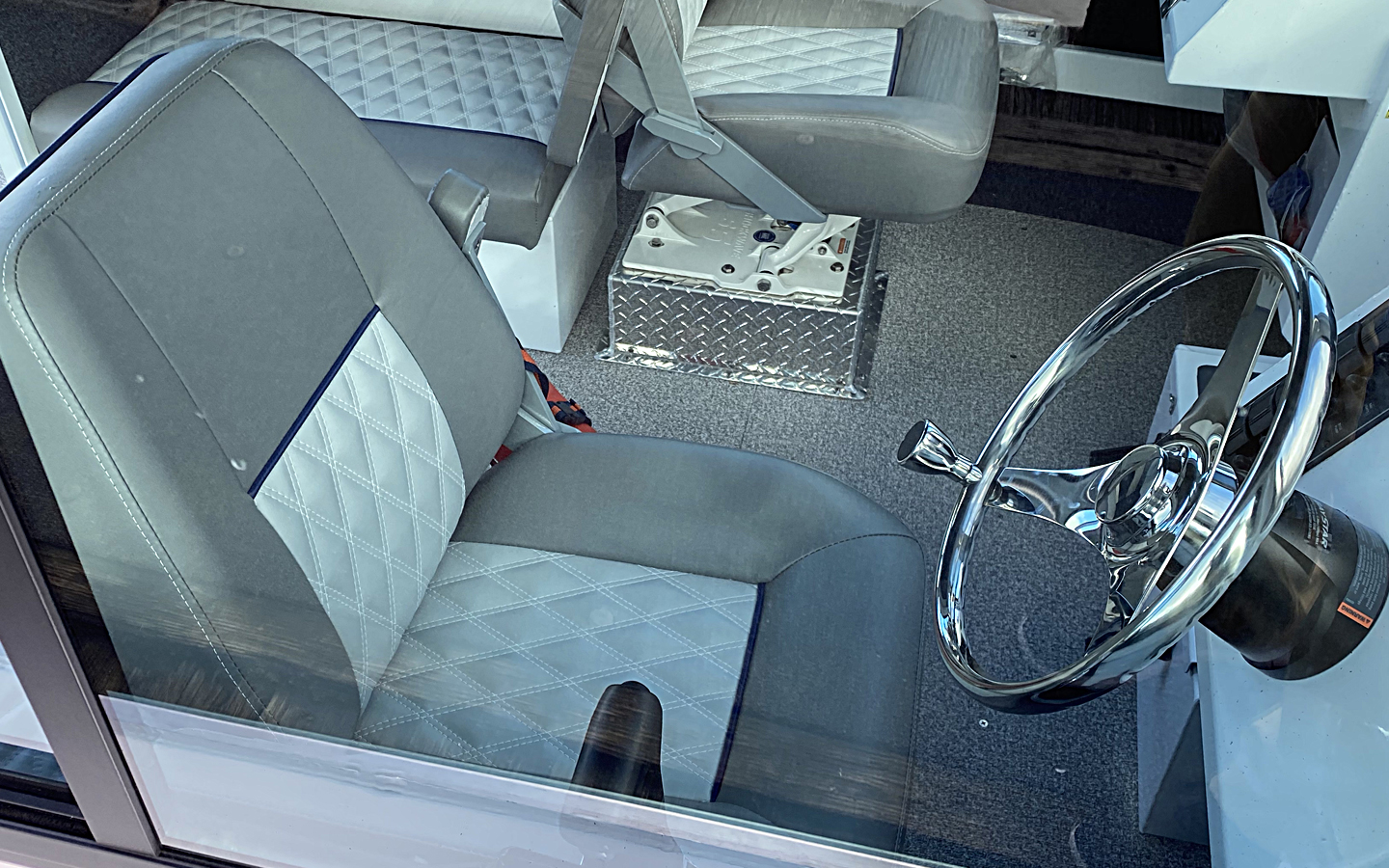

- Stainless Steel Steering Wheel
- HD Welded Cleats
- Full Width Swim Step Platform
- Welded Grab Rail on Dash
- Dual Bench Seats with Storage and Backrests
- Welded Walk-through Windshield
- Rigid Oversized Substructure
- 1″ Thick Solid Keel Extrusion (Full Length)
- Superior Strength 2 Piece Bottom w/ 4 Full Keel Welds
- True 72″ Chine Width
- Welded Lifting Strakes
- Welded Reversed Chine
- HD Chine Extrusions
- Zolotone Topside Coat with Clear
- Tempered Safety Glass Windshield
- Instrument Panel w/ Easy Access for Wiring
- Spare Switches for Added Accessories
- Blue Seas Switch Panel
- Anchor Marine Tinned Wire & Water Tight
- High Capacity Bilge Pump w/ Float Switch
- 12v Outlet on Dash
- LED Running Lights
- Anchor Lights
- Horn
- Aft Battery Tray w/ Blue Sea’s Switch
OUR WARRANTY
All Allied Boats are backed by an Industry Leading Limited Lifetime Structural Warranty
